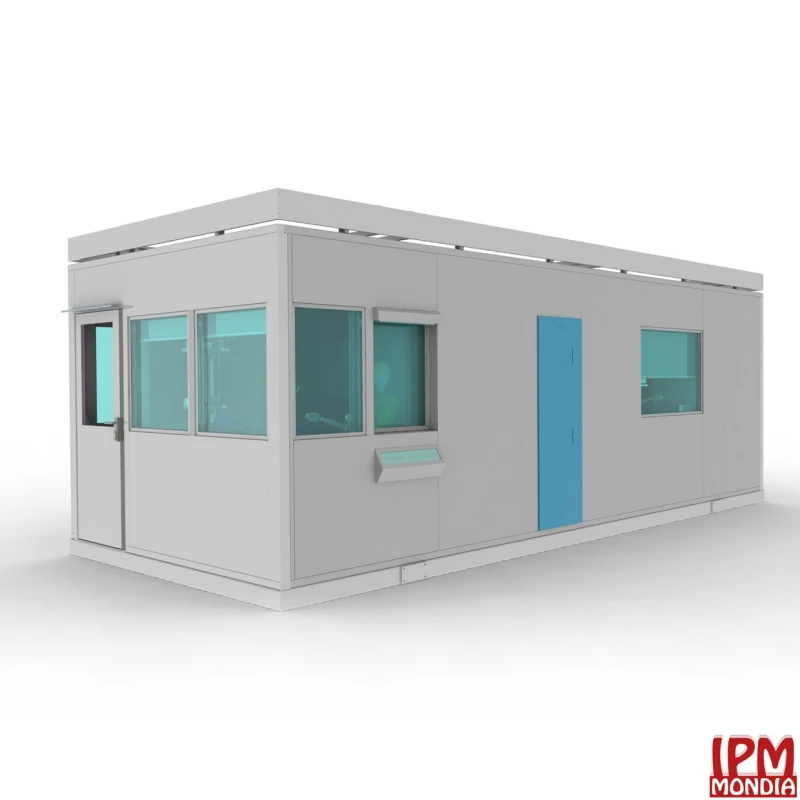

MAXI-CABINE TOLL
Technical shelters for toll booths in insulated sandwich panels with armored steel facings
Application areas
• Highway
• Road
• Tunnel
• Bridge
Principles of construction
• Lengths from 4 to 12 m
• Widths up to 3.00 m
• Heights up to 3.00 m• Steel base, surface treatment by metallization
• Monolithic sandwich panels
• 62 mm insulation which can be increased on request
• Coefficient U walls and reinforced roof
• Floor load 250 kg / m²
• Lifting from below on chassis with spacer
• Choice of shielding class and anti-break resistance
• Use of M0 materials
Benefits
• Very high resistance to environmental conditions thanks to monolithic panels
• Very high rigidity of monocoque structure allowing lifting under load
• Reduction of integration time by the ease of fixing in the panels
• Reduction of thermal bridges, reduction of interior condensation by its method of assembly by structural bonding
• Adaptation to your graphic charter with Pantone color chart by adhesive film or RAL color chart by paint
• Easy handling
• Factory integration of easements (electricity, heating, air conditioning, etc.)
• Reduction in dead weight through the use of modern materials
• Adaptation of the construction to the shielding class and the anti-burglary resistance
• Reduction of the duration of the construction site on the operating site
Concept adaptable to your operating constraints
• Dimensions
• Materials
• Location as an atex, corrosive area ...
