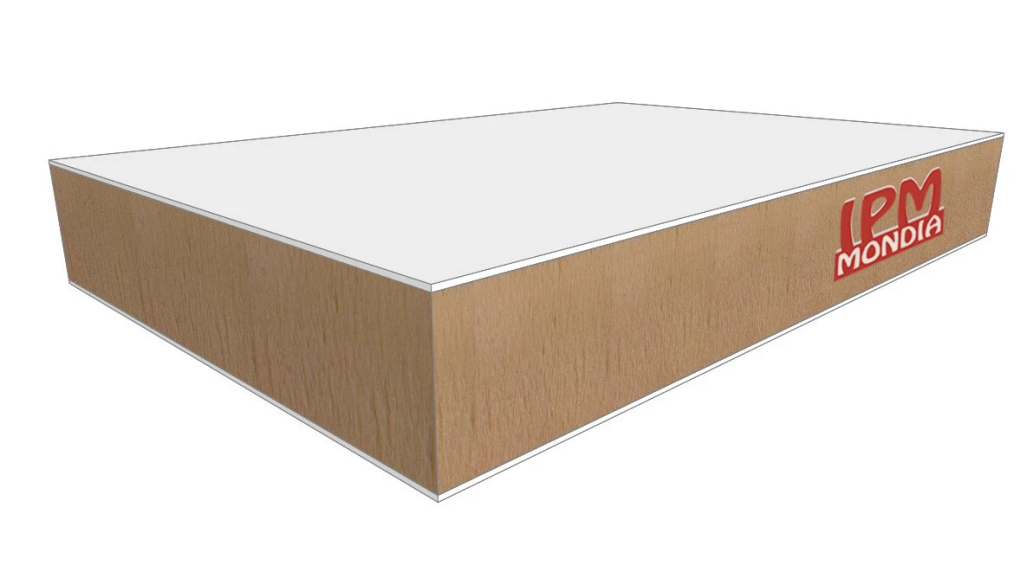

SANDWICH PANEL PMP PSX - PU - LDR
Sandwich panels insulated with polyester siding
Composition
P: 16/10 to 27/10 polyester siding, gelcoat white
M : Core in PSX extruded polystyrene, PU polyurethane, or LDR rock wool,thickness 26.5 to 100 mm
P: 16/10 to 27/10 polyester siding, gelcoat white
Application areas
• Industrial bodywork (ambulances, vans, stores, etc.)
• Rail
• Shipbuilding
• Insulation of industrial and food machinery
• Doubling of buildings (clean or gray rooms, laboratories)
• Military
Fixing and resistance
• Method of fixing the panels together:single-component polyurethane adhesive or two-component adhesive
• Mechanical resistance by riveting:20 kg at tear-off by 2 points
Possible integrations
• Steel, aluminum, wood, expanded PVC structures, etc
• Passage of steel, aluminum, PVC, IRO tubes
• Reinforcements located in sheet steel, aluminum or plywood strip
Limits of manufacturing and machining
• Dimensions of monolithic panels: 14650 x 3200 mm
Larger panels can be made by interlocking
2 High Speed Machining Centers (HSM)
• Machining on digital table: 9460 x 2950 mm
• Machining on digital table: 14650 x 3200 mm
