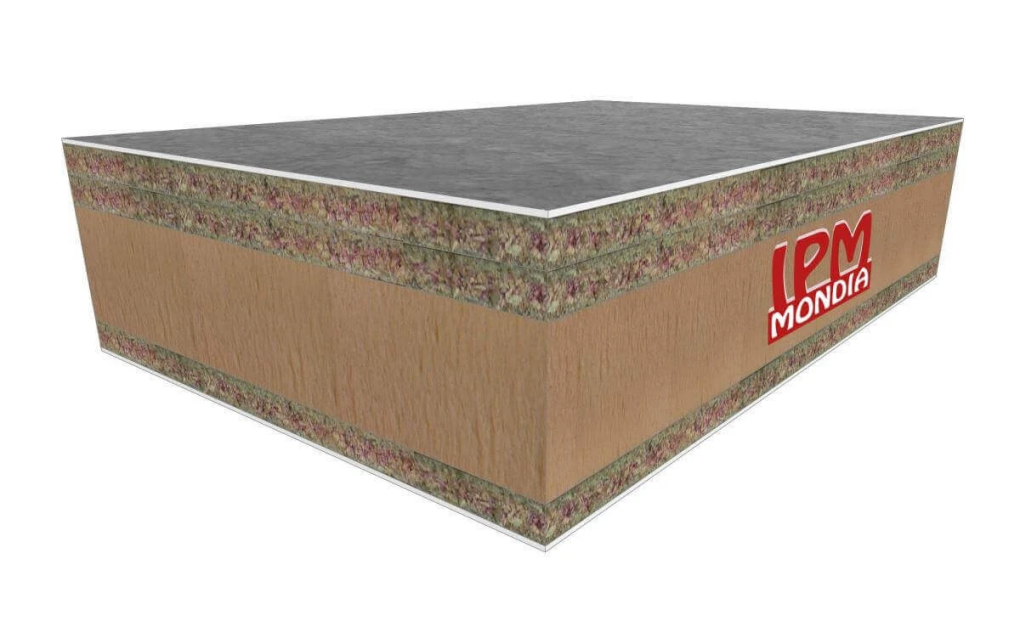

WOODEN COMPOSITE FLOOR
Sandwich panels structural insulated
Materials choice
Interior facing
raw wood, paint, unrolled PVC, checkered aluminum sheets, non-slip unrolled polyester
Punch reinforcement
1 to 2 layers of wood crossed in CTBH or CTBX thickness according to resistance
Insulation
Extruded polystrene, polyurethane, or rock wool thickness according to thermal coefficient
Compression reinforcement
possibility of wooden sleepers at intervals of 600 to 1200 mm depending on resistance
Optional punching reinforcement
1 to 2 layers of wood in CTBH or CTBX thickness according to resistance
Exterior facing
Polyester, aluminum or stainless steel
Application areas
• Technical shelters, modular constructions, cabins
• Industrial bodywork (ambulances, vans, stores, etc.)
• Rail
• Shipbuilding
• Insulation of industrial and food machinery
• Doubling of buildings (clean or gray rooms, laboratories)
• Military
Fixing and resistance
• Method of fixing the panels together:single-component polyurethane adhesive or two-component adhesive
• Mechanical resistance by riveting:20 kg at tear-off by 2 points
Possible integrations
• Steel, aluminum, wood, expanded PVC structures, etc
• Passage of steel, aluminum, PVC, IRO tubes
• Reinforcements located in sheet steel, aluminum or plywood strip
Limits of manufacturing and machining
• Dimensions of monolithic panels: 14650 x 3200 mm
Larger panels can be made by interlocking
2 High Speed Machining Centers (HSM)
• Machining on digital table: 9460 x 2950 mm
• Machining on digital table: 14650 x 3200 mm
